Size does matter.

The camera system that adapts to your needs.

Introducing the Cerberus camera system, LMP Lux Media Plan continues the everlasting reinvention of the worlds smallest true HD camera systems.

Based on the successful HD1200 camera system, the modular Cerberus system combines three 2/3“ sensors using the identical processing hardware, making the camera heads interchangeable. Focussing on the individual advantages of different sensor types, the Cerberus system adapts to your needs with ground-breaking performance in every field. Experience the familiar workflow deduced with exceptional new features.

Download Brochure

The peculiar heads

CERBERUS HD1200 is the succesful base of the whole system. It is well introduced and is probably the best soltion for day-to-day broadcasting and simple cinematographic applications.

Image Sensor2/3“ CMOS (viimagic 9226)
with Rolling Shutter
2112x1124 total pixel, 16 : 9
Readout1920x1080 @ 60 frames/s
Dynamic Rangelinear mode: 60 dBhdr mode: up to 120 dB
SensitivityF 11/2000 lx at nominal gain
S/N Ratio57 dB (Y) at nominal gain
Frame Rates
1080p/720p

23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60with optional HFR upgrade
100/120

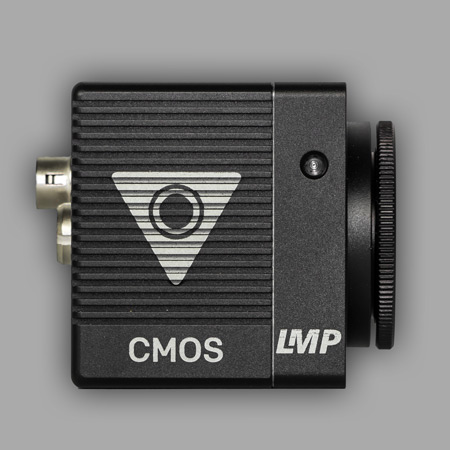

CERBERUS CMOS is the systems flagship camera head. It offers a global shutter and an impressive dynamic range for day-to-day broadcasting applications as well as special applications and cinematography.

Image Sensor2/3“ CMOS (viimagic 9215)
with Global Shutter
2048x1148 total pixel, 16 : 9
Readout1920x1080 @ 60 frames/s
Dynamic Rangelinear mode: 60 dBhdr mode: up to 120 dB
SensitivityF 11/2000 lx at nominal gain
S/N Ratio56 dB (Y) at nominal gain
Frame Rates
1080p/720p

23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60

CERBERUS CCD is the CCD Sensor couterpart of the system. It offers a global shutter and extensive sensitivity.

Image Sensor2/3“ CCD (KA02150)
with Global Shutter
2004x1144 total pixel, 16 : 9
Readout1920x1080 @ 60 frames/s
Dynamic Range64 dB
SensitivityF 8/2000 lx at nominal gain
S/N Ratio56 dB (Y) at nominal gain
Frame Rates
1080p/720p

23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60



HD1200

CMOS

CCD

Image Sensor

2/3“ CMOS (viimagic 9226)
with Rolling Shutter
2112x1124 total pixel, 16 : 9

2/3“ CMOS (viimagic 9215)
with Global Shutter
2048x1148 total pixel, 16 : 9

2/3“ CCD (KA02150)
with Global Shutter
2004x1144 total pixel, 16 : 9

Readout

1920x1080 @ 60/120 frames/s

1920x1080 @ 60 frames/s

1920x1080 @ 60 frames/s

Dynamic Range

linear mode: 60 dB

hdr mode: up to 120 dB

linear mode: 60 dB

hdr mode: up to 120 dB

64 dB

Sensitivity

F 11/2000 lx at nominal gain

F 16/2000 lx at nominal gain

F 11/2000 lx at nominal gain

S/N Ratio

57 dB (Y) at nominal gain

56 dB (Y) at nominal gain

56 dB (Y) at nominal gain

Frame Rates
1080p/720p


23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60

with optional HFR upgrade
100/120


23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60


23,98 / 24 / 25 / 29,96 / 30 / 48 / 59,94 / 60

Although each of the camera heads inhabits several individual features, the successful signal processing algorithms of our well introduced HD1200 camera system form the fundamental basis of the Cerberus camera system. Combining an outstanding number of simultaneous live outputs, such as RAW, HDSDI and analog component, with the familiar camera control workflow, the Cerberus system perfectly adapts to your specific needs.

physically

DimensionsCamera Head: 38x42x42 mm
CCU: 140x120x30 mm
Weightcamera head: 140g
CCU: 420g
light version: 310g
Lens MountC-Mount adjustable back-focus,
adaptors for B4, Nikon, Arri PL
Power8-15V DC, 15Watt

technically

Format16 : 9
Image directionhorizontal/vertical flip
without latency
Output Signals

HDSDI up to 3Gbit/s

HDSDI interlaced (2x BNC)

HFR (100/120fps) in
       Dual link EVS-format
       Dual link progressive

SDI, CVBS, analog component,

HDSDI RAW Data in 12/10 bit
WeissCam or Cinema DNG

HDMI (1x Mini-HDMI)

HDMI Outcamera picture in output format
Cable lengthup to 40m with single coax cable
(4mm Belden 1865A)
Data format

LMP Multiplex containing

Power 12V DC
2,7Gbit Sensor Data
bi-directional RS232

Genlock

tri-level sync +/- 2 lines
in steps of 1 pixel

HDSDI pixel by pixel in 3D mode

control-wise

White Balanceautomatic or manual YRGB
preset 3200°/5600°/7200°
Gammamanual YRGB
Black Balancemanual YRGB
SaturationF 11/16/2000 lx at nominal gain
Gain0dB, +3dB, +6dB, +12dB
Color Matrix4 presets / 2 user defined
Detailseparate horizontal and vertical detail
Shutter5 steps up to 1/1000 auto shutter with adjustable exposure
Test signals8 HD test patterns
SD Formataccording to HD framerate
Iris controlspeed and direction
Focus controlspeed and direction
Serial control

duplex / simplex RS 485

duplex / simplex RS 232

USB 2.0 / TTL 921600 Baud

Remote Controlhardware remote panel Windows GUI
System calibrationautomatic black/shading/FPN correction
3D Controlsmix- /multiplexing between camera
and HDSDI genlock
Presets4 presets of main controls
  • Fiber extends the maximum distance, directly establishing an SMTPE fiber connection between head & ccu.

  • Optional motorization for focus and iris with various gearrings

  • Baseline-motorized 3D rig with pan/tilt adjustment-screws

  • Remote control panel for up to 99 cameras.

  • The core Element of any Cerberus system.

  • 105° super-wide-angle lens without distortion

  • 120fps Upgrade for HD1200, providing up to 100/120fps in EVS & slomo.tv compliant signal!

The smallest true HD remote camera system.

The amazing microHD is currently the smallest „true“ HD remote camera system, perfectly designed for sports, shows, concerts and many other imaging applications.
It provides impressive performance and robust features in a small housing, offering incredible possibilities for spectacular views.

The 1/3 inch, 2.1 Megapixel progressive CMOS Sensor provides excellent video quality in progressive resolution up to 1080p/60 fps. Single-link HDSDI up to 3 Gbit/s, analog Component and HDMI are directly and simultaneously provided by the compact Camera Control Unit.
The professional Remote Control Panel as well as the Windows GUI offer full control over long distances. For 3D applications, Genlock In- and Output ensure accurate timing.

Download Specifications

physically

Cable lengthup to 15m with 20 pin camera link cable
Power10-15V DC, 7Watt
DimensionsCamera Head: 28x28x32mmCCU: 170x120x30 mm
WeightCamera Head: 22 gincl. 2,7mm lens: 45 gCCU: 420g
White Balanceautomatic or manual YRGB
preset 3200°/5600°/7200°
Gammamanual R-G-B
Black Balancemanual R-G-B
Chroma Gain0 - 100 %
Gain0dB(default), +6dB, +12dB
Color Matrix16 vector manual adjustment
Detailsetting of Detail Band, Detail Level and Red Detail
Shutter8 steps up to 1/10.000
auto shutter with adjustable exposure
Test signalscolor bar 75%
Digital Formataccording HD framerate
Analog HD OutRGB/HV or YPbPr interlaced
Analog Genlock RangeTri-level sync+/- 2 lines
in steps of 1 pixel
Kneeauto or manual adjustment
of kneepoint
Blackstretchon/off
Digital Noise reduction3 steps
Serial controlduplex / simplex RS 232
Remote ControlHardware Remote Panel
Windows based GUI
Internal Control3 menus with OSD
System calibrationautomatic black/shading/ FPN correction
Presets3 direct presets of main controls

technically

Image Sensor1/3 inch progressive CMOS Sensor
Resolution1920 x 1080 active pixel
Frame rates1080i@50/59,941080p/720p@23,98/24/25/29,96/30/59,94/60625i/525i 50/60
Formats16 : 9  /  4 : 3
Readoutprogressive scan 1920 x 1080, @ 60 frames/s
Dynamic rangelinear mode: 55dB
Output SignalsHDSDI 2x BNC 270 /1.485/2.970 MBit/s
analog RGB or Y/Pb/Pr HDMI
SensitivityF 8/2000 lx at nominal gain
S/N Ratio54 dB (Y) at 0dB gain
Gain Control0dB, +6dB, +12dB
Lens MountC-Mount with adjustable Back-Focus,
adaptors for NF-Mount (17mm), B4-Mount, Nikon, Arri PL
HDMI Outcamera picture in selectet output format
Genlockanalog Tri-level sync input and output
